Scott Aerator Solar Pond Aerator - Boilermaker, 4-Panel

Description

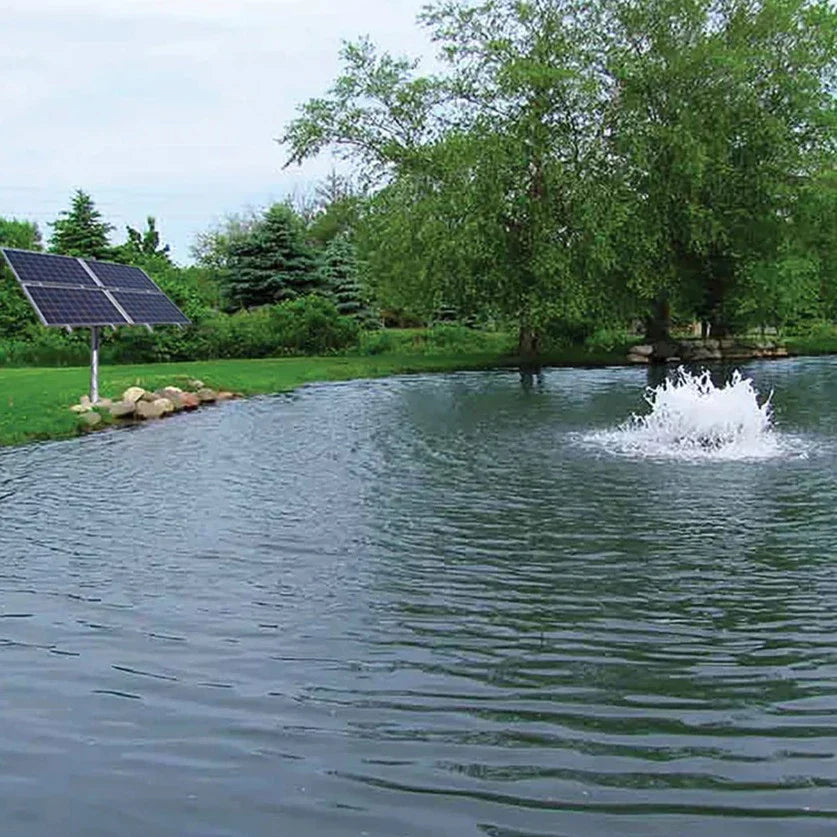

Scott Aerator Solar Boilermaker Aerator (4-Panel): Sustainable Pond Aeration for Large, Remote Areas.

Need to aerate a large pond without nearby electricity? The 4-Panel Solar Boilermaker Aerator features a variable-speed, submersible induction motor from Franklin Electric, capable of circulating up to 300 gallons of water per minute.

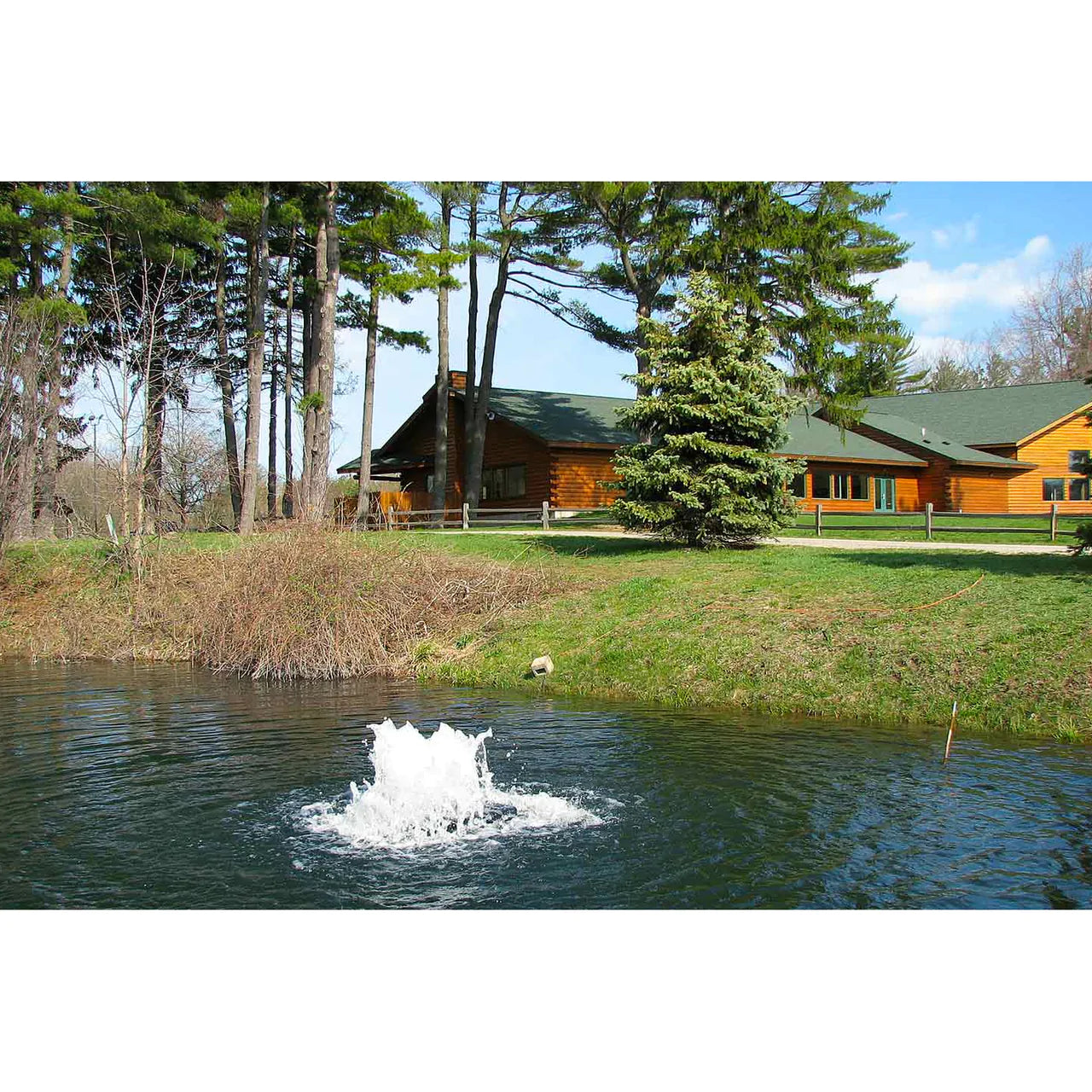

This environmentally friendly water aerator promotes pond health with minimal water display. Its low-profile design and solar power ensure efficient water circulation, maximizing oxygen transfer. Increased oxygen benefits fish and helps break down organic matter at the pond bottom, reducing muck over time. The Boilermaker also creates strong surface currents to clear algae and debris.

Designed for daytime operation, the unit activates with sunlight, adjusts speed based on light conditions, and turns off at night. The solar PV panels gradually increase water flow as sunlight changes, removing the need for expensive, high-maintenance batteries common in other solar aerators. The motor is made from durable, oil-free stainless steel, requiring minimal upkeep.

The Boilermaker also works as a pond de-icer in winter. Like all Scott Aerator Company products, it doesn't require costly winterizing. Leave the aerator in the water, disconnect power, and it's ready for spring. All parts withstand sub-zero temperatures without damage.

This easy-to-install system includes the Boilermaker aerator, four solar panels with a frame, a disconnect box, a Fhoton™ drive solar inverter, and all necessary wiring. You will need to supply a vertical pole for the panels and frame, a concrete base for the pole, and two anchor ropes with weights or tethers for the aerator.

The Boilermaker is made in the USA and includes an unconditional 5-year motor warranty. It comes with 70 feet of heavy-duty, 12-gauge, submersible power cord; longer lengths are available.

The Boilermaker solar aerator works in both fresh and saltwater. Disconnect power when swimmers are present.

Installation

1. Assemble The Unit

Assembling Scott Aerator Fountains takes about 15-20 minutes. Instructions are included. Fountain kits contain:

• Pump with cylindrical casing and attached power cable
• Square float platform
• Protective stainless steel filter
• Decorative nozzle (not for DA-20)
• 5/16"x2" stainless steel bolts
• Stainless steel nuts & washers
• Self-tapping stainless steel screws

Tools Needed: Wrench (or socket driver) and pliers.

Assembly Steps:

1. Place the fountain housing on a stable surface with the pump discharge opening facing up.
2. Attach nylon rope (not included) to the two stainless steel eyebolts for anchoring.
3. Position the float and secure it with the two 5/16" x 2" bolts, washers, and nuts provided.
4. Turn the fountain upside down, remove the Styrofoam doughnut, and place the stainless steel filter. Align the pre-drilled holes on the fountain with the filter markings and secure with the three self-tapping screws.

2. Attach Lights (Skip if no lights ordered)

Scott Aerator fountain light kits easily attach to the square float platform. Light kits include:

• (2) or (4) LED light fixtures with power cable
• 1/2" bolts & nuts
• (2) or (4) stainless steel arm brackets
• Timer/control unit
• Remote control (for color-changing lights only)

Tools Needed: Wrench & Pliers

*Note: The included timer/control unit is required for light operation. Do not disconnect the cord from the control unit; this voids the light warranty.

Assembly Steps:

1. Attach each arm assembly to the water feature, ensuring the arms are oriented with the “L” facing upward. Remove one of the 2" bolts securing the float to your Scott water feature and align the holes with the stainless steel arm. Reinsert the bolt with a washer, passing it through the housing, float, and stainless steel arm. Secure with a washer and nut. Repeat for remaining arm assemblies.
2. Attach each light to the slotted end of the stainless steel arms. Insert a 1/2" x 1/4" bolt downward through each light bracket and steel arm, then secure with a 1/4" nut. Lights can be adjusted along the arm by loosening the lock nut, moving the light, and re-tightening.
3. Connect the lights to the Timer Control Unit by aligning pins and twisting the connector together half a turn only. Avoid forcing the connection to prevent O-ring or wiring damage.

3. Place in water

• Once assembled, the unit is ready for placement in water for final adjustments and anchoring.
• Handle the fountain carefully; do not rest the fountain's weight on the stainless steel filter.
• Once the fountain head is submerged, secure it by screwing it into place (not for DA-20).
• Float the fountain to your desired location and secure the attached nylon ropes to the shore or use two concrete blocks submerged at least 20 feet apart.
• Finally, connect your fountain and lights to your power source. Always use a ground fault circuit interrupter (GFCI) and consult a licensed electrical contractor for power source installation.

Buying Guide

Choosing Horsepower

• Horsepower affects the size and flow rate of your fountain's spray. More horsepower means greater water movement and a larger or thicker spray.

• Selecting horsepower depends on your budget and pond size. While largely personal preference, a good rule is to maintain at least 10 feet between the fountain spray and the pond's edge.

Choosing Voltage

• If unsure, contact us.

• If using 115V power at the pond's edge, consider the maximum distances from pump to breaker (including the power cord length).

• If using 230V at the pond's edge, distance is generally not a concern.

Choosing LED Lights (Optional)

• Can be purchased now or added later. Light sets easily attach to the float.

• Lights operate on 110V and have their own power cord.

• Options include single-color warm white LED lights or color-changing LED lights.

• Both options include a programmable timer. Color-changing lights come with a remote control effective up to 1,000 feet away.

• 2-light sets are suggested for 1 HP and below.

• 3-light sets are suggested for 1.5 HP and 2 HP.

• 4-light sets are suggested for 3 HP.

Choosing Timers (Optional)

• Can be purchased now or added later.

• Timers are for controlling fountains only, not lights.

• FAQ: The difference between residential and commercial 230V timers is the box material (plastic for residential, metal for commercial). Both function the same.
